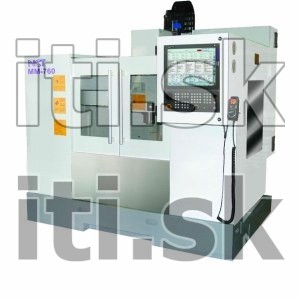

MM-760

Viewed: 5812x
Manufacturer: NCT
Type: MM-760
Year of manufacturing: NEW
Parameters: spindle RPM 8000, table 900x410 mm, X/Y/Z=760/430/460 mm
Description:
CONSTRUCTION AND CHARACTERISTICS
Rigid casting bed, column and slides
Mounted, linear guideways on all axis
Slide system and ball screws with central oil lubrication
Without counterweight
Telescopic metal guideway cover on every axes heads
Y axis cover moves under column
Easy to open, large glass side working space doors

SPINDLE
Belt driven spindle
Spindle taper #40, DIN or BT tooling
Spindle Taper cleaning by airblow
Headstock spindle bearings with life long grease lubrication
Ground, highprecision double nut ball screws
Ball screws pretensioned and supported in bearings at both ends

MAGAZINE
Umbrella type magazine

CONTROL AND ELECTRONICS
NCT 201 smart touch CNC (touchscreen)
EnDat 2.2 absolute measuring system, 0,00005 mm positioning resolution and nano interpolation

WARRANTY
36 months warranty for the CNC and for all the electric parts of the machine
12 months warranty for the mechanical part of the machine
CE conformity

TECHNICAL SPECIFICATIONS
WORKING AREA
Table size: 900 x 410 mm
T-slot number x size x distance: 4 x 16 x 100mm
Table load capacity: 350kg
Spindle nose distance from table surface: 102 - 552 mm
Spindle centre distance from column: 480mm
Positioning accuracy: < 0,02mm
Repeatability accuracy: < 0.008mm

AXIS
Number and type of X / Y / Z guideways: Lineáris 2 / 2 / 2
Number of X / Y / Z block unit: 4/4/4
X travel: 760 mm
Y travel: 430 mm
Z travel: 460 mm
Rapid travel speed of X / Y / Z axis: 24 / 24 / 24m/min

SPINDLE
Max spindle RPM (basic) 8000 RPM
Max spindle RPM (option) 1000 RPM
Spindle taper size (standard): SK 40
Taper cleaning: Compressed air
Drive: Belt
Number of ranges: 1
Headstock cooling: Air

SPINDLE MOTOR
Rated Power (standard): 7 kW
Rated torque (standard): 0 Nm
Cooling: Air

TOOL MAGAZINE
Magazine type: Umbrella
Number of tool positions: 16

INSTALLATION
Floor space x height: 2200 x 1665 x 2300 mm
Net machine weight: 2800 kg
Electrical connection: 3 x 400VAC VA

STANDARD ACCESSORIES
Umbrella type magazine
Light for working area
One color alarm lamp
Chip conveyor and trolley
Watergun
NCT 201 Controller 15" touchscreen
Built in handwheel
HEIDENHAIN Indirect measuring system (absolute)
1 + 1 day training
Installation and commissioning

OPTIONS
Increased spindle speed
Pushbutton working space washing gun
Oil skimmer
CNC rotary / indexing tables, tailstocks and rotating supports
Manual and CNC tilting rotary tables Hand and CNC tilting rotary tables
Power operated chucks and vises
Workpiece and tool probe
Hydraulic / pneumatic actuating system for table
Mist extractor
Automatic door movement
19" touchscreen monitor
External handwheel
myNCT graphical programming
CADCAM softwares
Spindle and axis motors quadratic acceleration
HSHP (high speed high precision machining)
Switch off the machine from technological program
Three colour status lamp
Partial or full installation of axis 4 or 5
Green technology
NCT simulator
Remote access
Robot cell junction interface
Delivery, Loading, movement
Workpiece technologization
Training at NCT Academy
