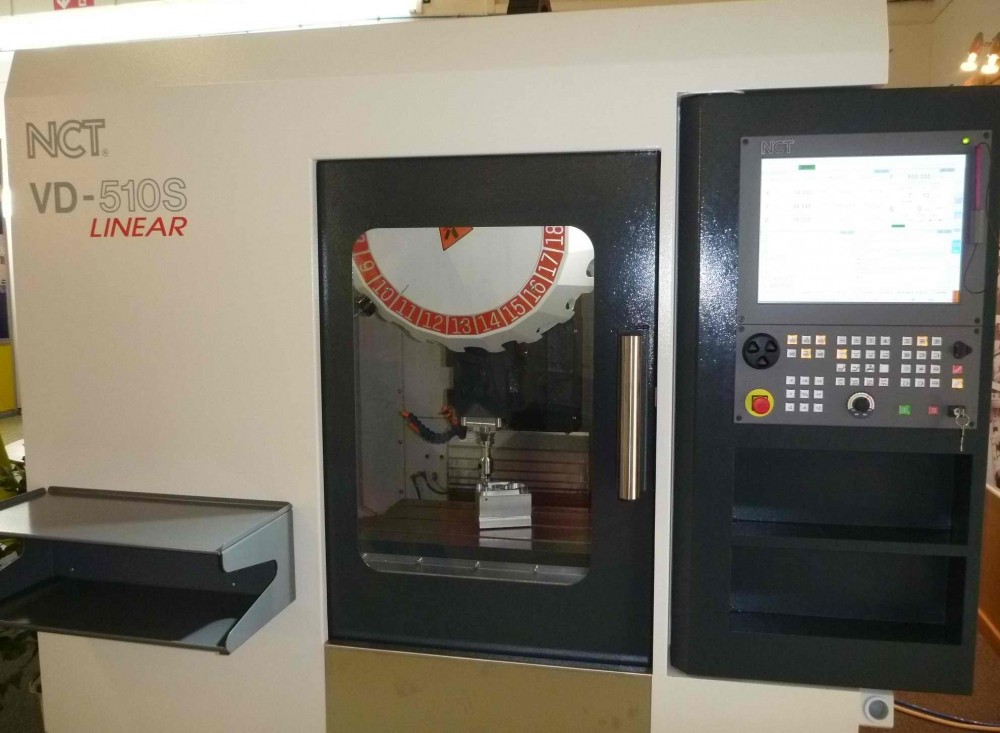

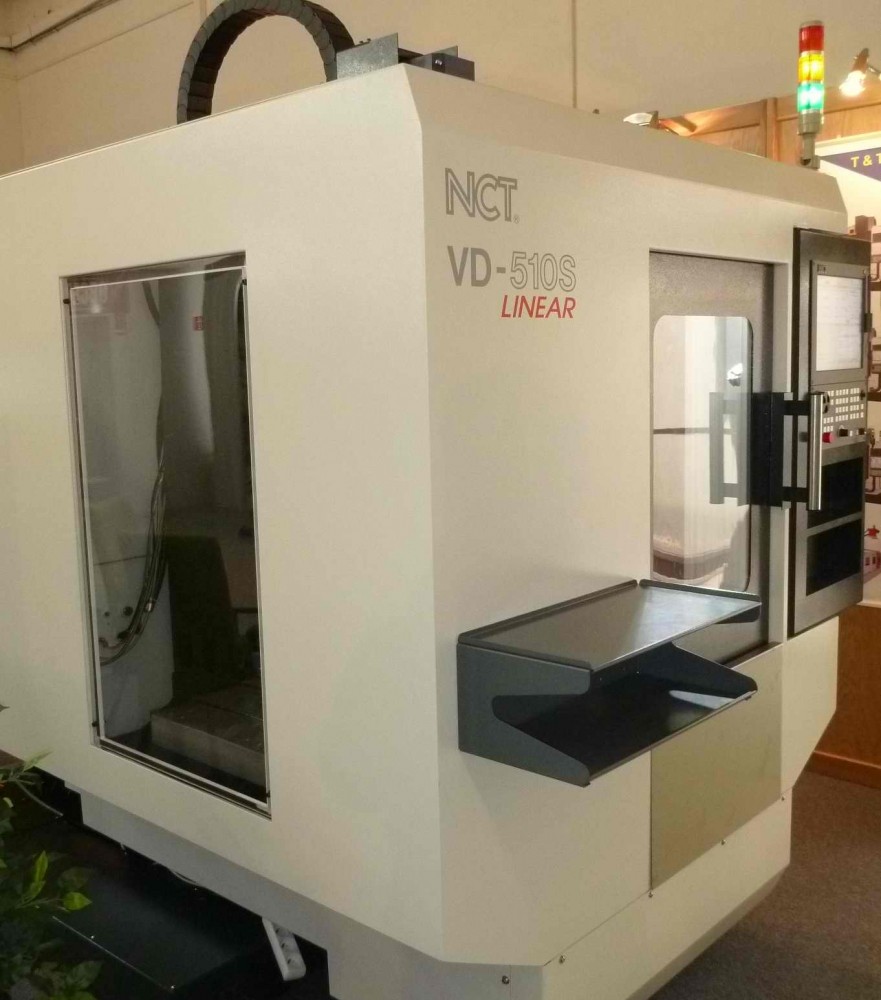

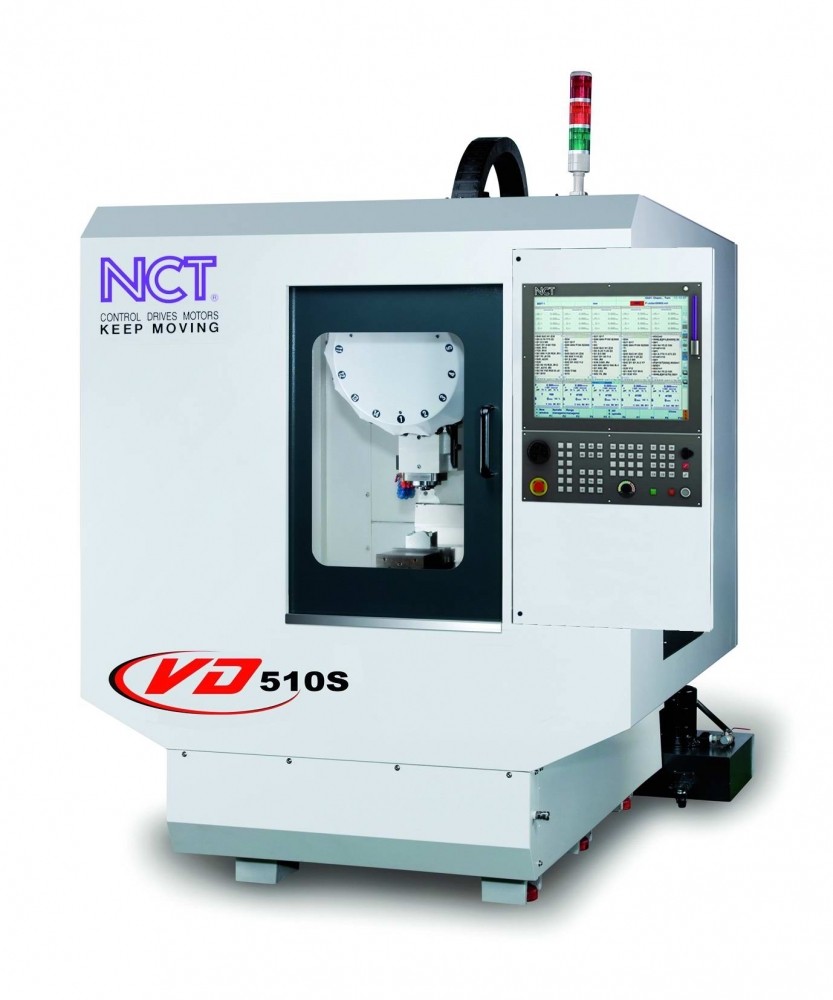

VD-510S

Viewed: 5440x
Manufacturer: NCT
Type: VD-510S
Description:

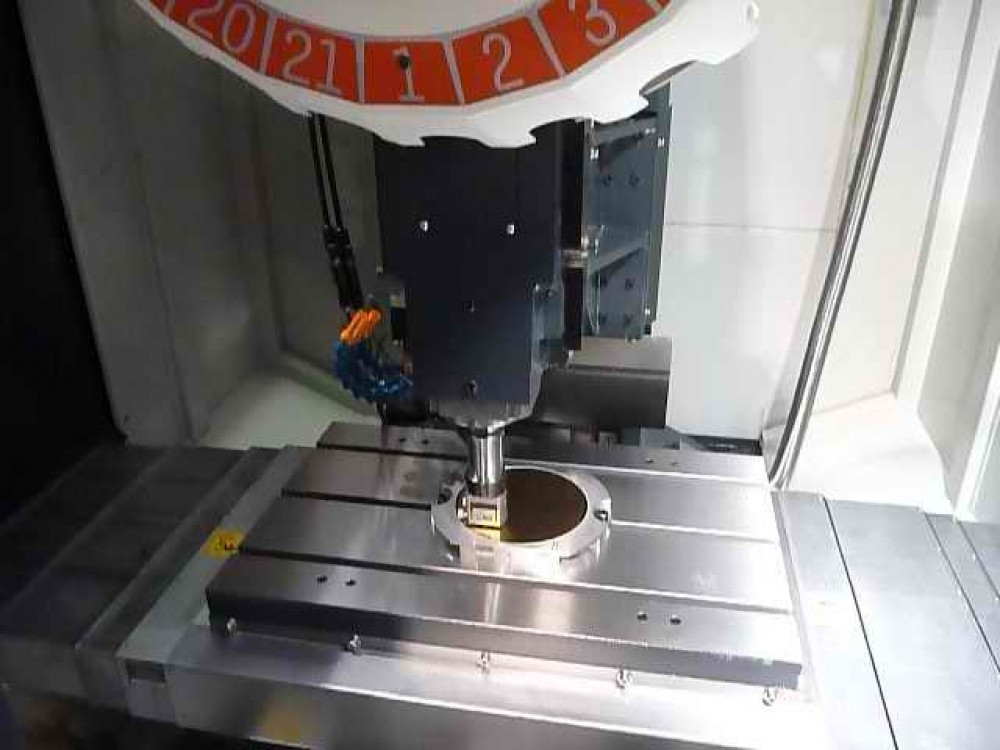

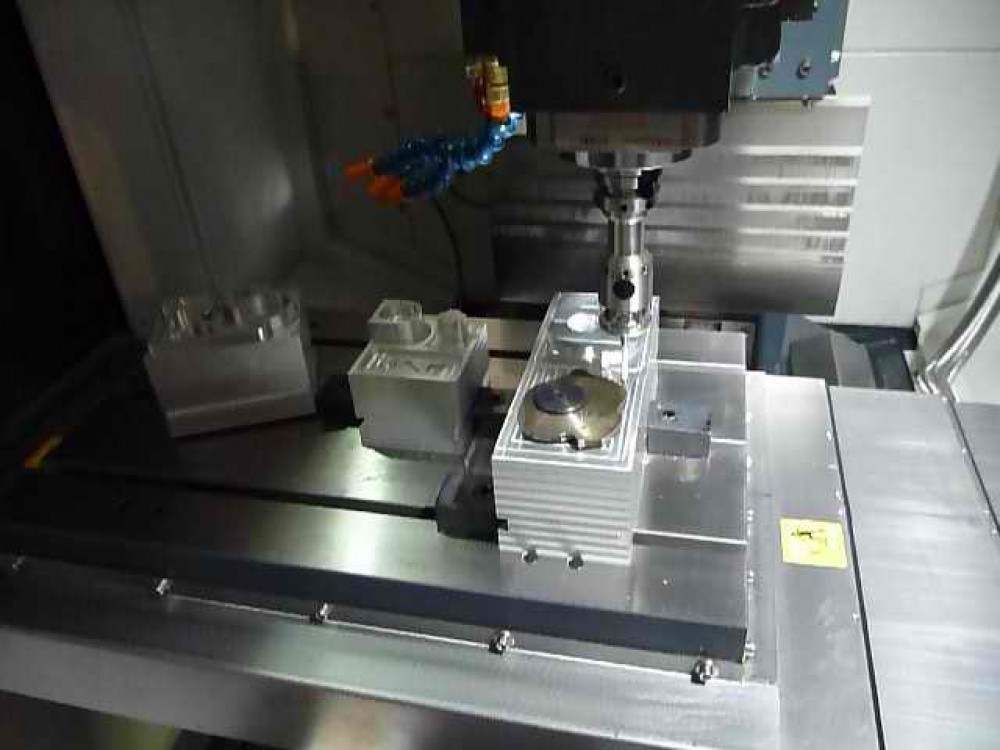

WORKING AREA:
Table size: 650 x 400 mm
T-slot number x size x distance: 3 x 14 x 125mm
Table load capacity: 250kg
Spindle nose distance from table surface: 170 - 435 mm
Spindle centre distance from column: 460mm

AXIS:
Number and type of X / Y / Z guideways: Linear 2 / 2 / 2
X travel: 510mm
Y travel: 406mm
Z travel: 265mm
Rapid travel speed of X / Y / Z axis: 48 / 48 / 48m/min

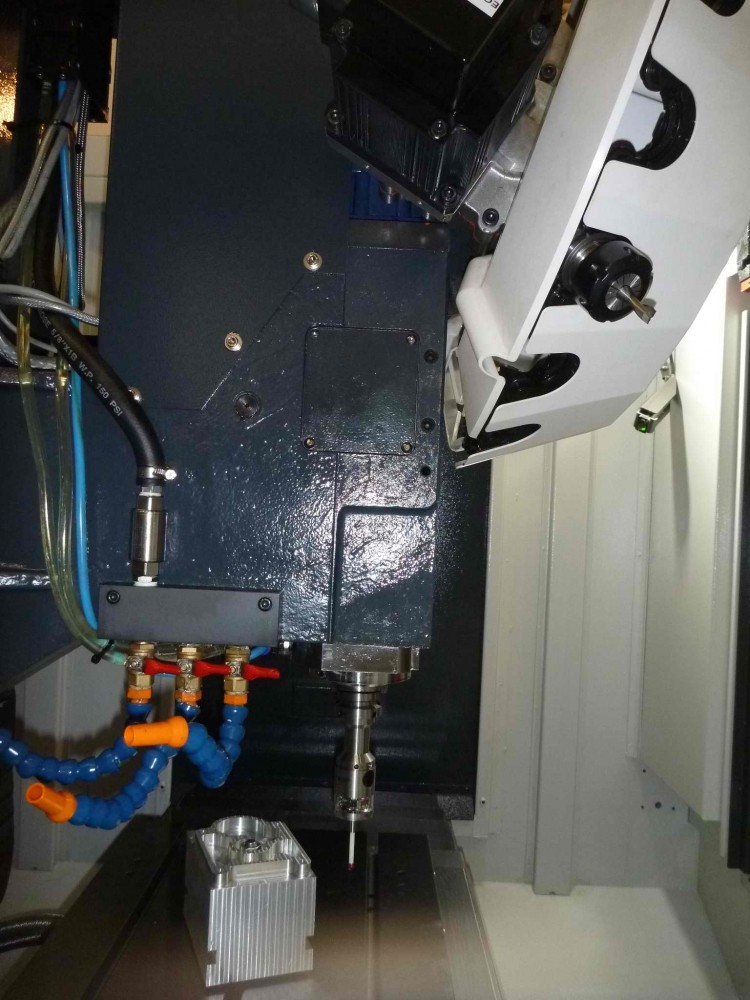

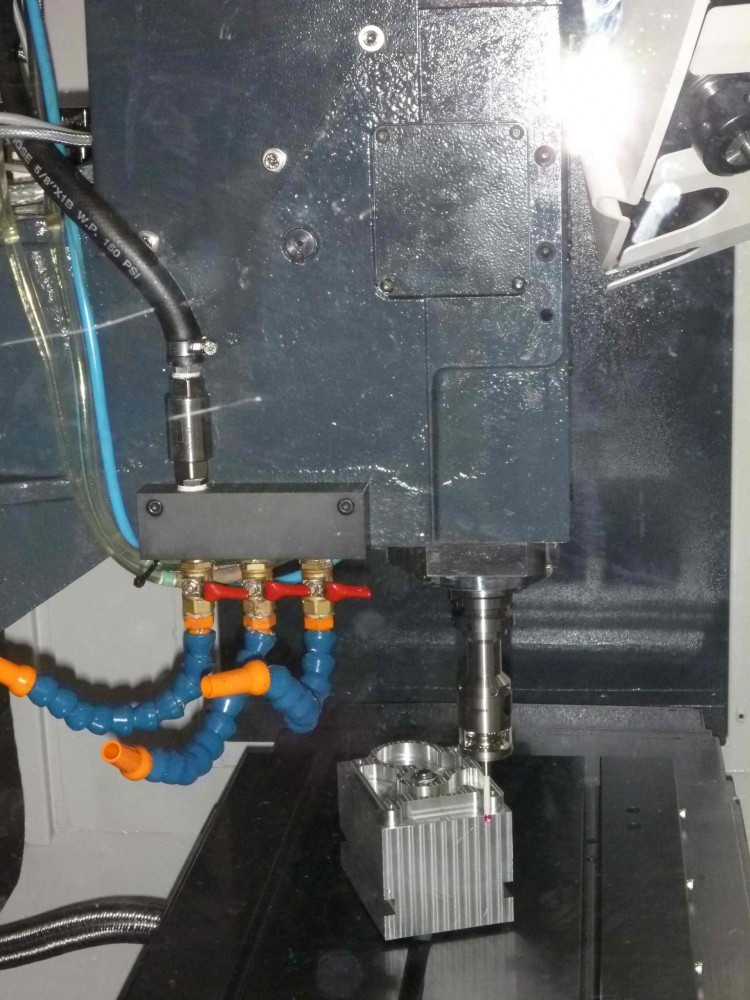

SPINDLE:
Spindle taper size (standard): BT 30
Taper cleaning: Air
Drive: Direct

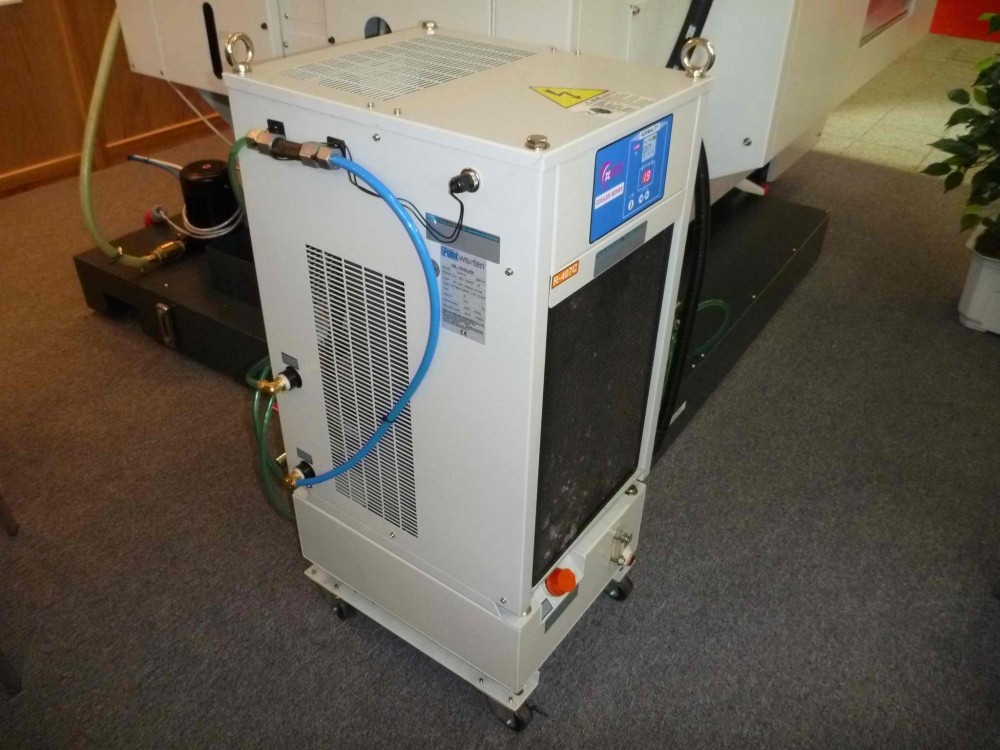

Headstock cooling: oilcooler (opt)

SPINDLE MOTOR:
Rated Power (standard): 5,2 kW
Rated Power (option.): 3,7 kW
Cooling: Air

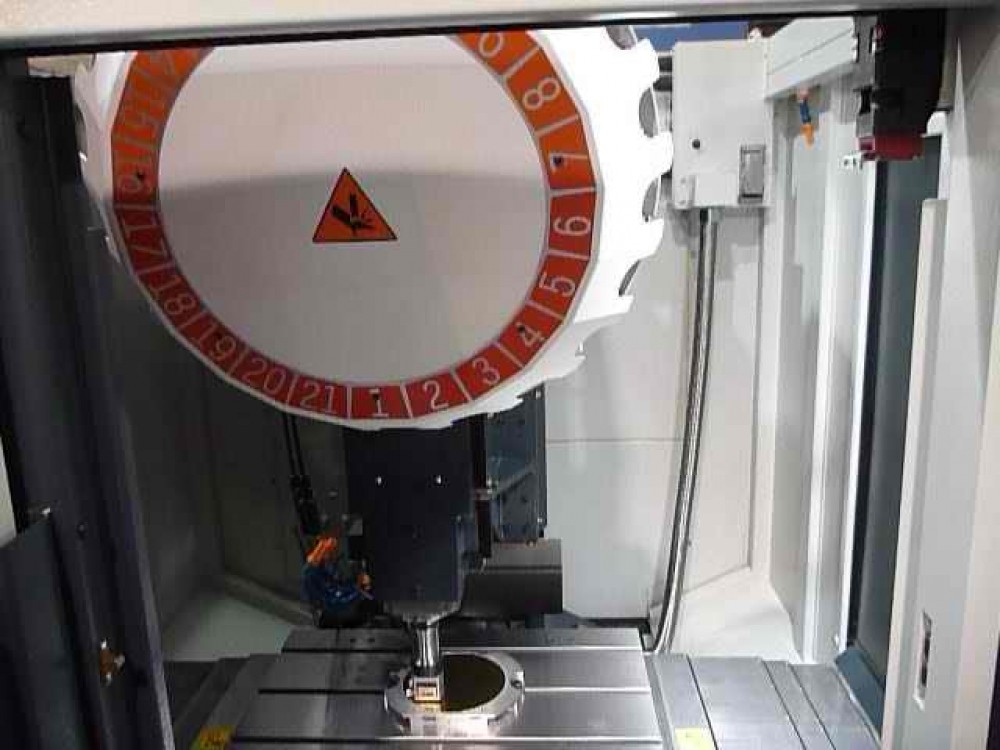

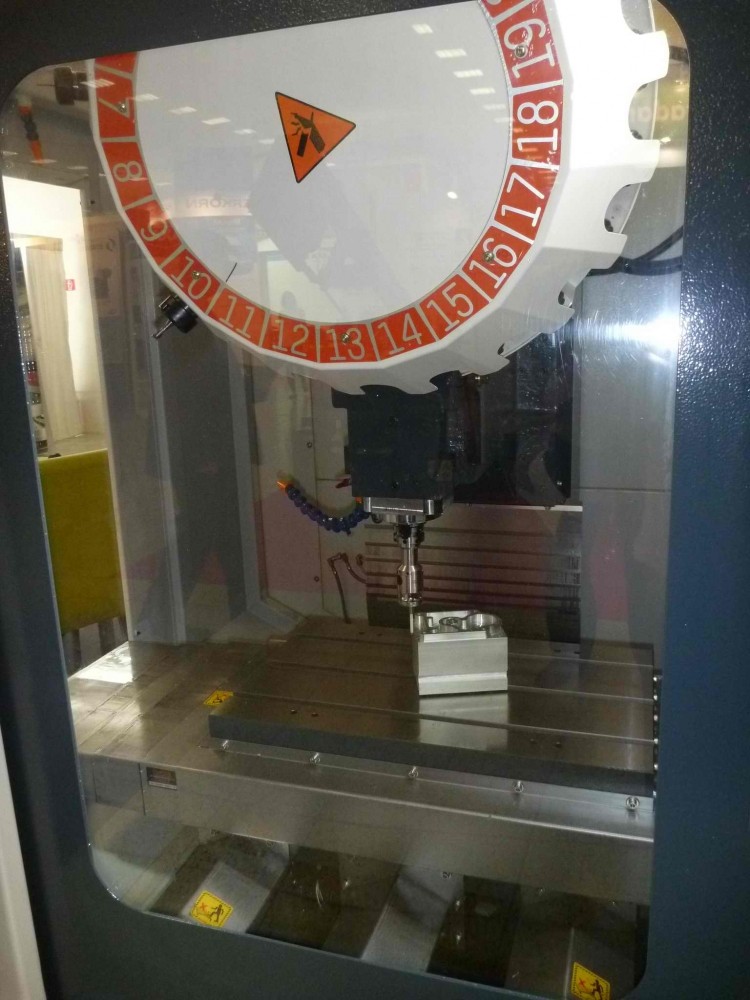

TOOL MAGAZINE:
Magazine type: Disk type
Number of tool positions: 14 (21 opt.)
Tool change time (T to T): 1,6 sec
Tool change time (C to C): 2,5 sec
Tool change time 180°: 2,8 sec


INSTALLATION :
Floor space x height: 1600 x 2150 x 2320 mm
Net machine weight: 2600 kg
Electrical connection: 3 x 400 VA
