pilar drill FO 32-20 - NEW!!! (Viewed: 7858x)

Manufacturer: Hungarian
Type: FO 32-20
Description:

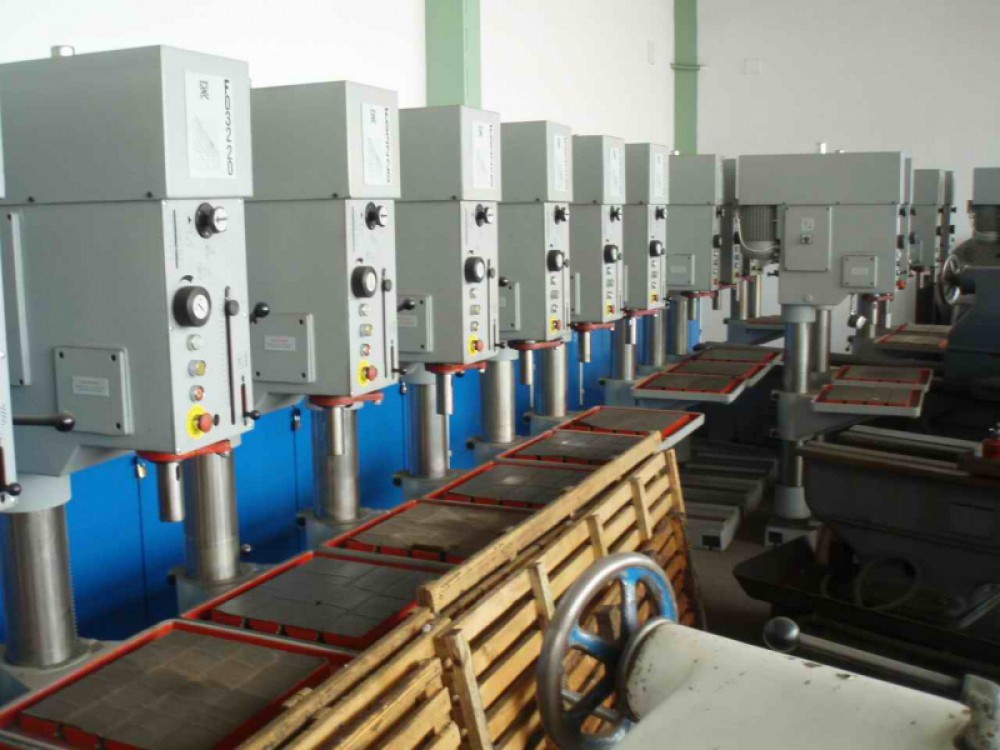

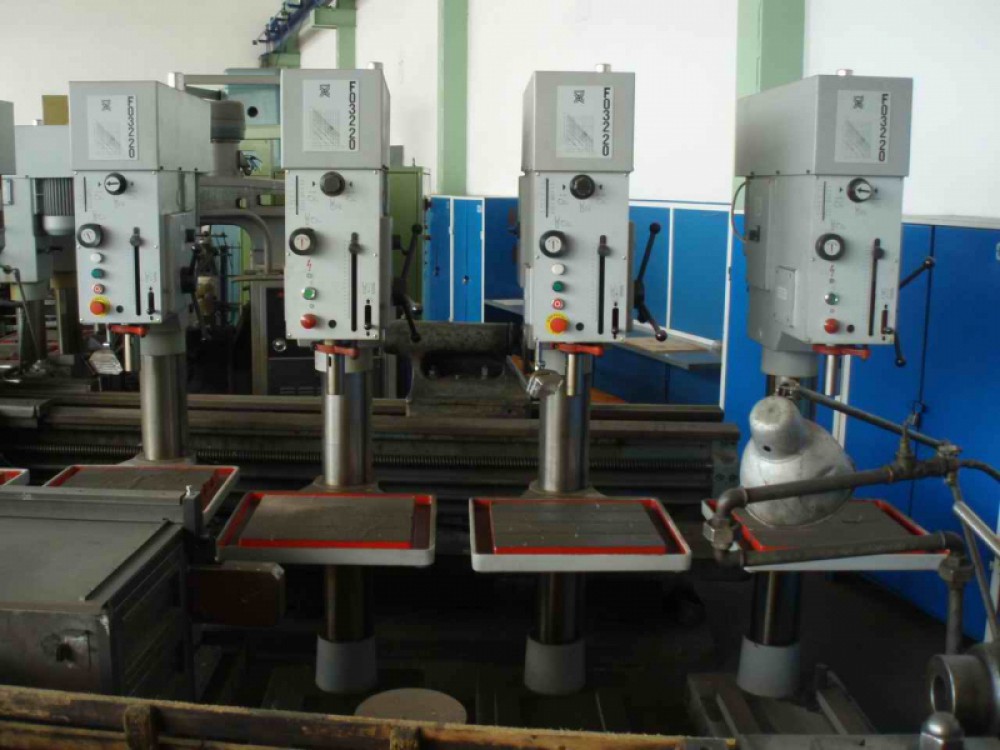

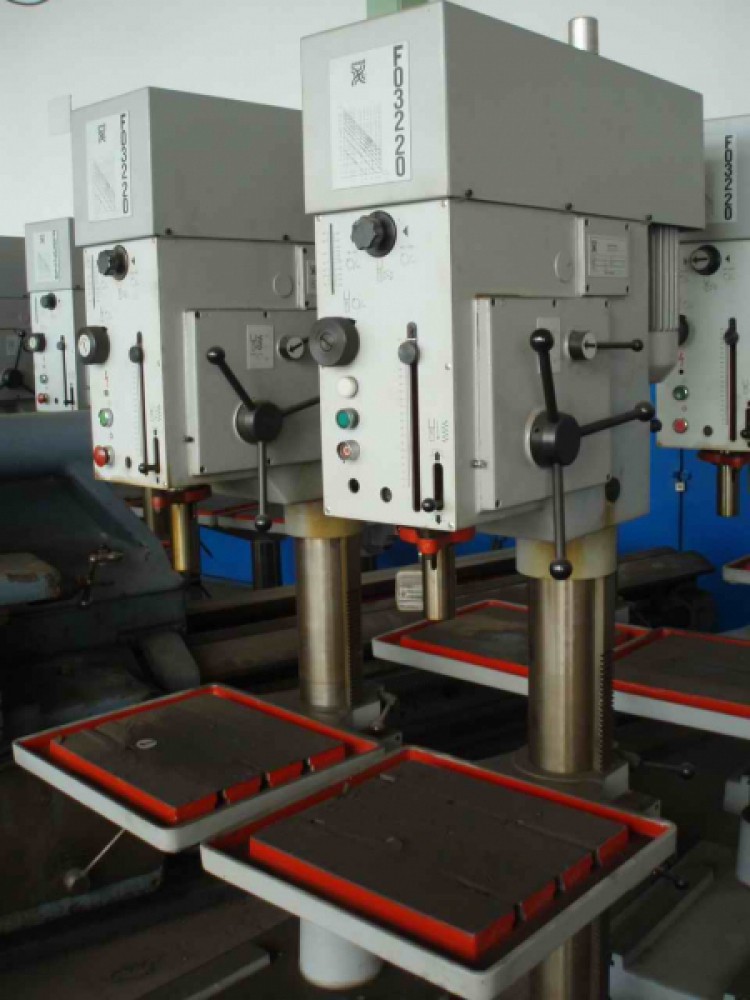

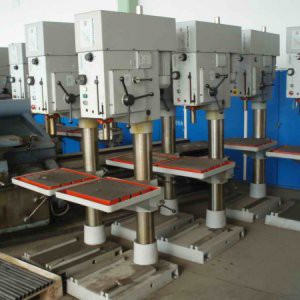

column drills FO 32-20 - 46 pieces
- brand new, never used pilar drills
- make Hungarian

- stepless RPM changing
- drilling, boring and thread cutting
- body from casting

PARAMETERS:
- max drilling diameter 32 in steel (Rm=500 N/mm2)
- max drilling diameter 40 in casting
- max drilling diameter 40 in aluminium
- RPM: 80-2000 (stepless; 1st range 80-400, 2nd range 400-2000)
- spindle with taper MORSE 3
- stroke of spindle 200 mm
- table dimensions: 400x450
- base dimension: 400x500
- 2,2 kW main motor
- weight 450 kg

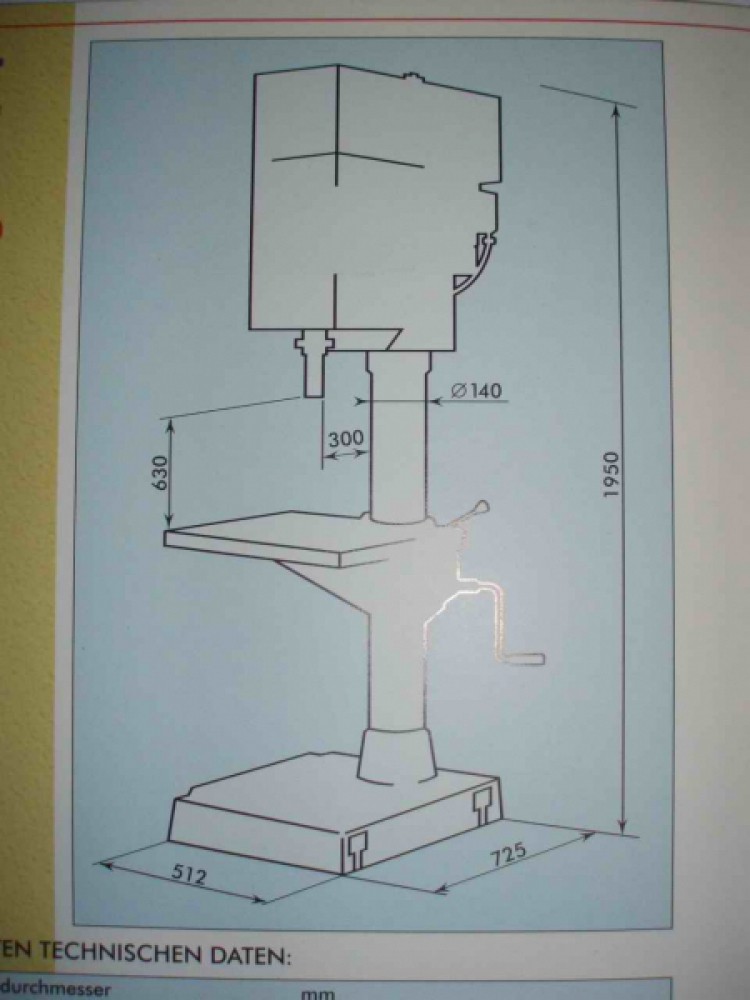

- dimension: 880x570x1950 mm
