MATRA - FANUC TAPE CUT W2 - 1991 (Viewed: 58x)

Manufacturer: MATRA
Type: FANUC TAPE CUT W2
Year of manufacturing: 1991
Description:

MATRA - FANUC TAPE CUT W2 - 1991
- workpiece (LxWxH): 450x650x300 mm
- workpiece weight: 350 kg
- wire diameter: 0,05 x 0,33 mm
- power required in the network with cooling: 11 kVA
- relative humidity: 75 RH max
- vibration: 0,5 G max
- main power 200V AC: +/- 10 percent
- three-phase 50/ 60Hz
- cooling water temperature: 10-25 C degrees
- water flow: 15-35 liters/ minute
- fresh air temperature for evaporator: 5-40 C degrees
- weight: 2300 kg

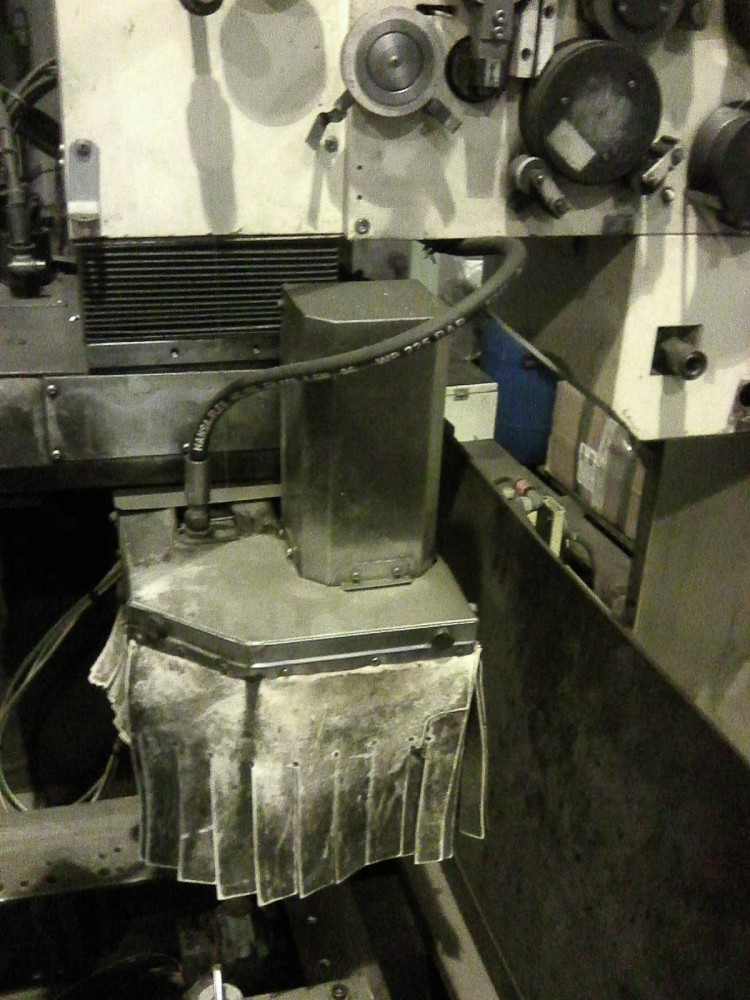

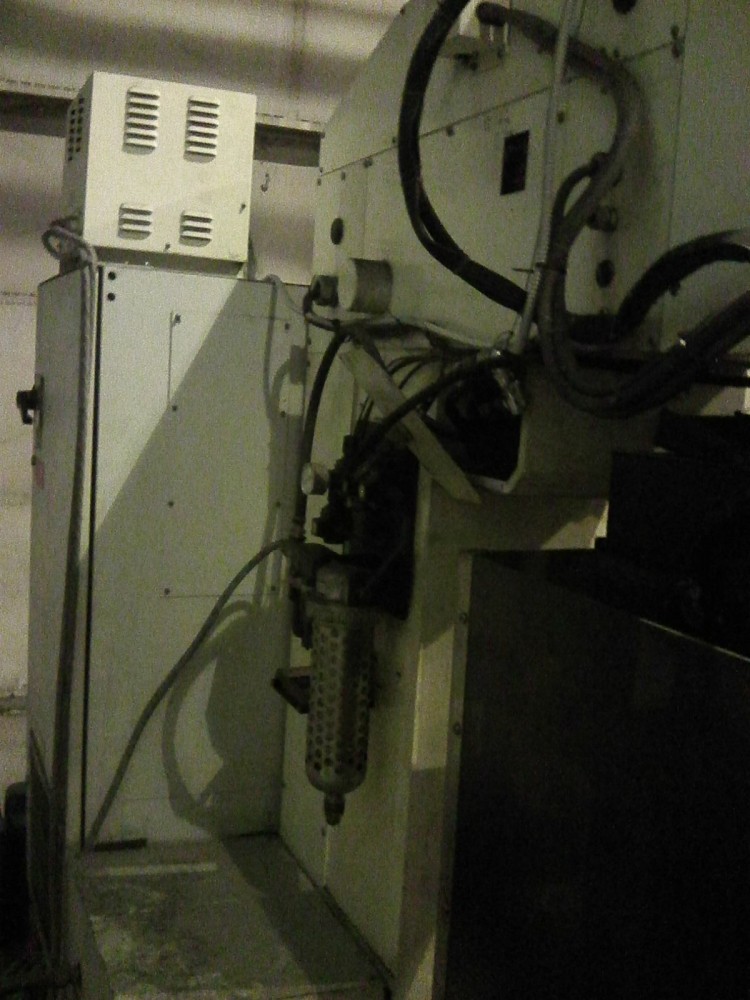

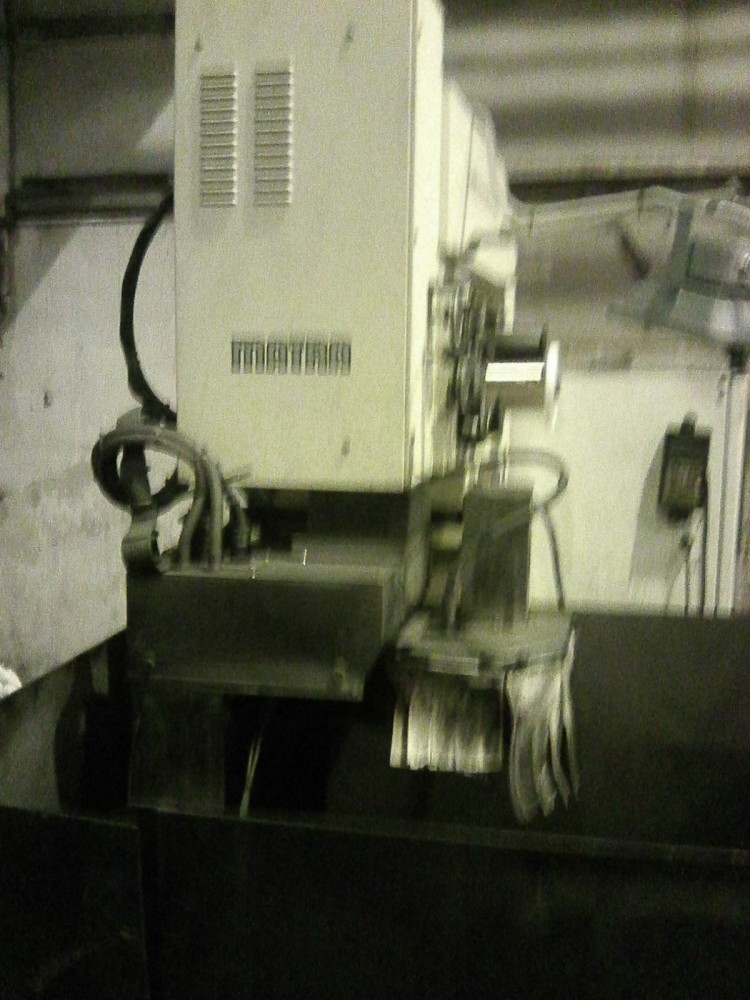

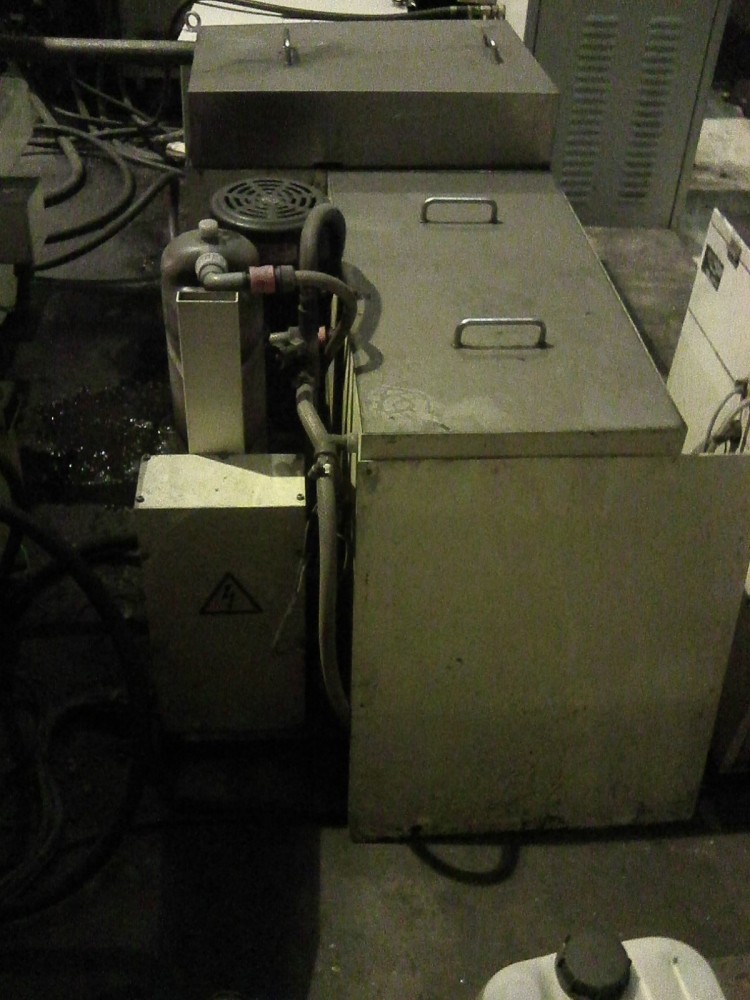

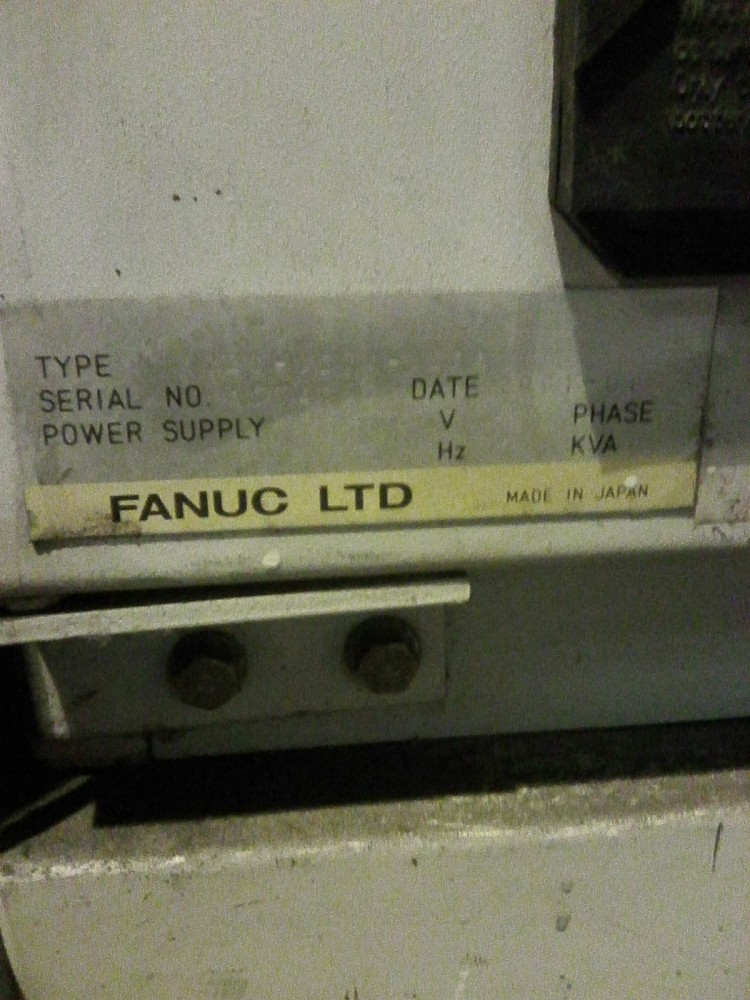

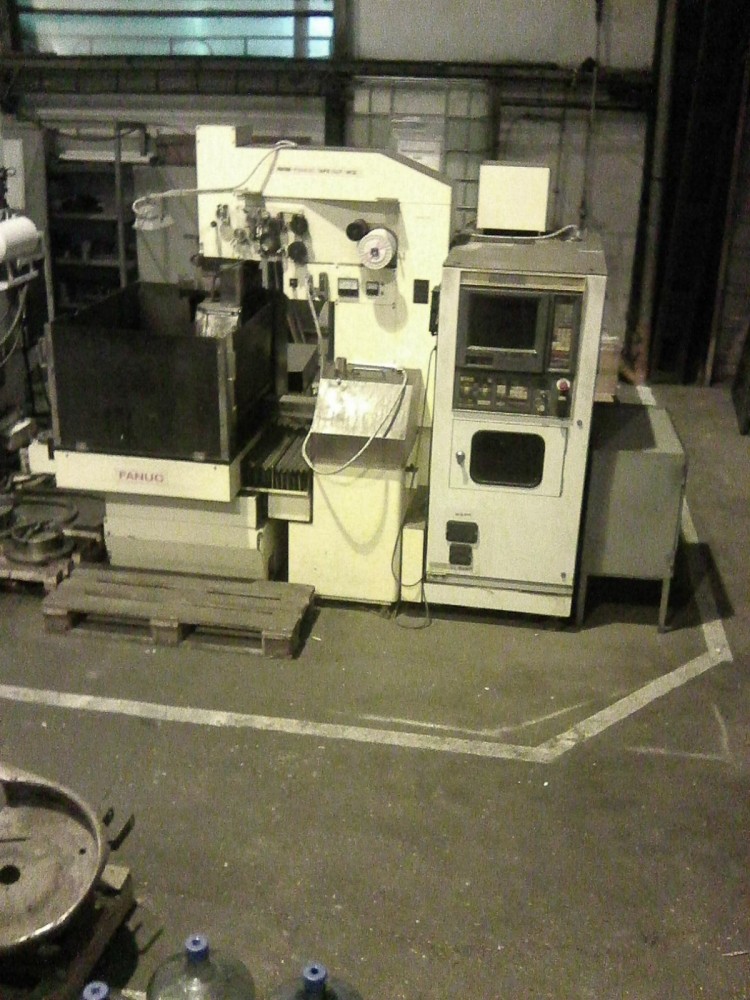

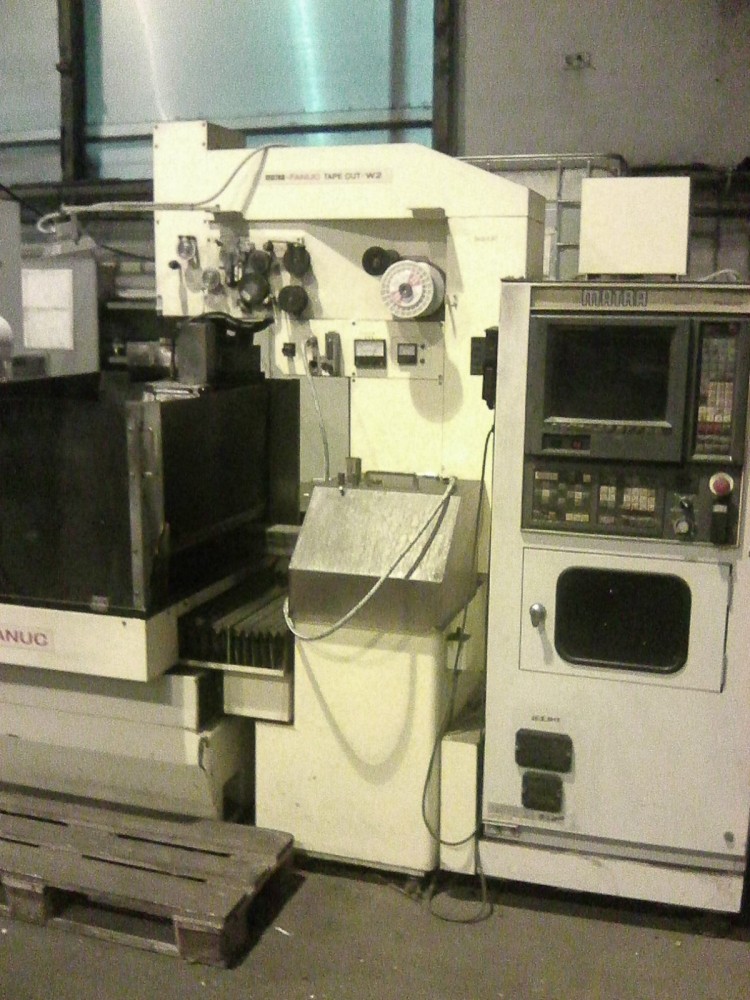

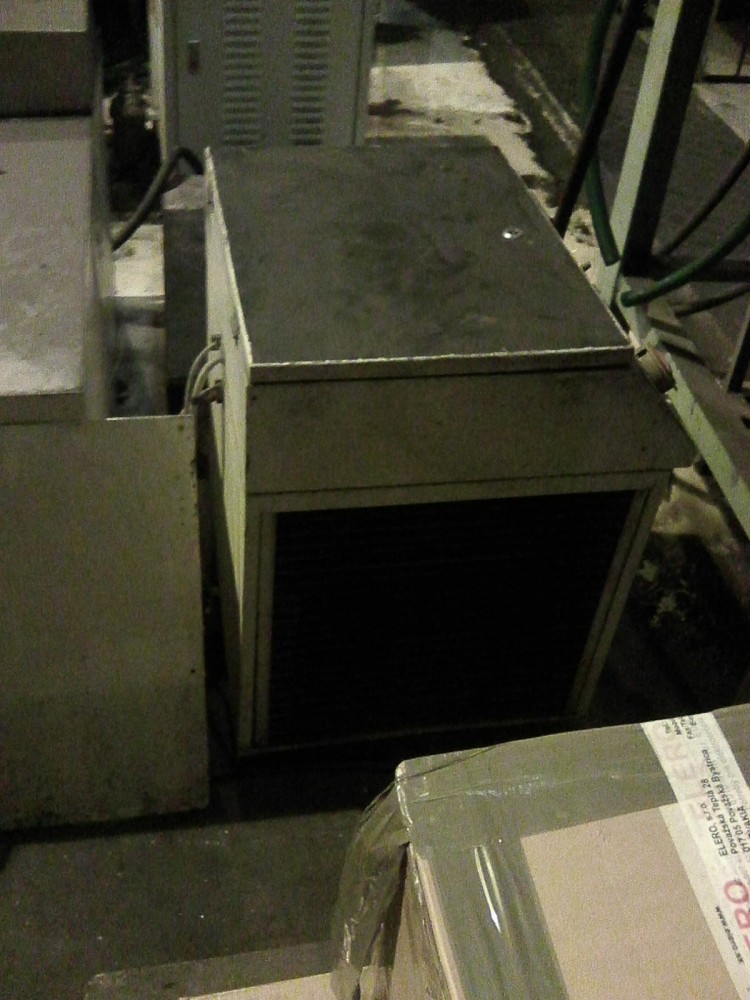

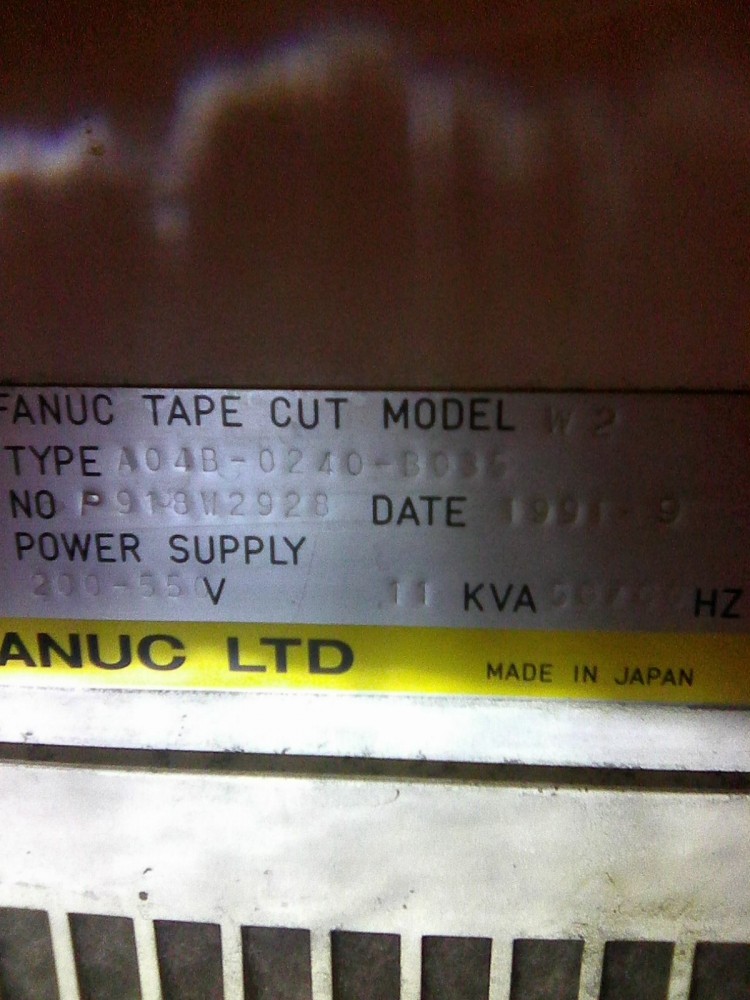

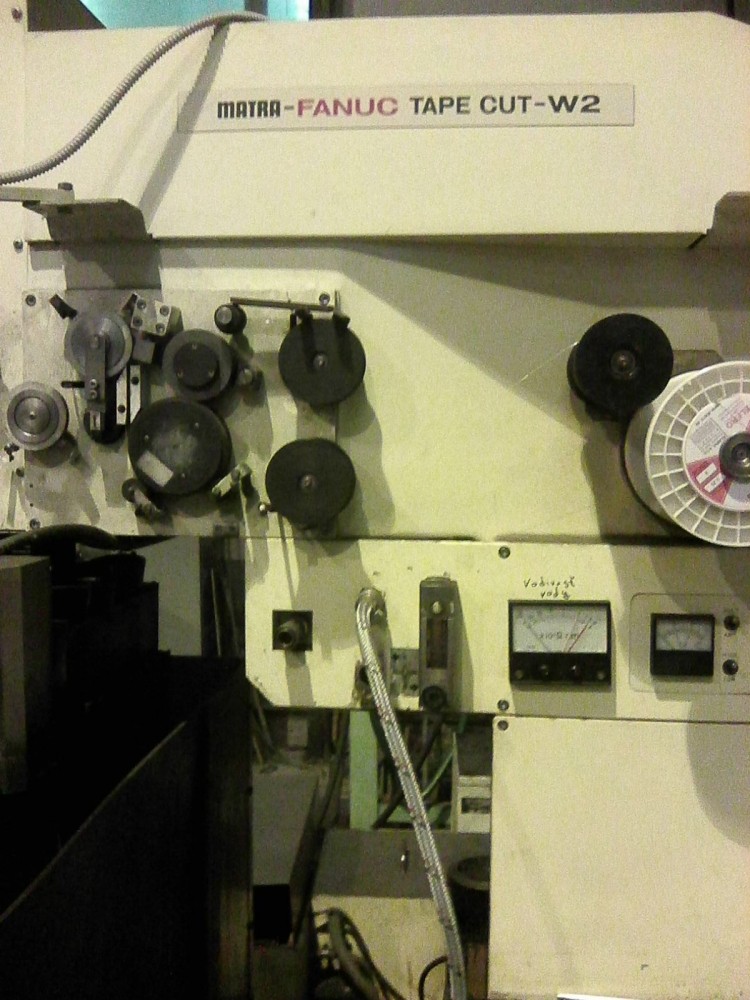

Photos
